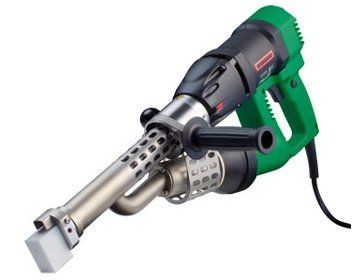

Fusion 3C

€ 4.170,00

Attribute Unit Value
Power V 230
Voltage W 2800
Frequency Hz 50/60
Air volume (20*C) l/min 300
Material   PE/PP
Welding rod mm Ø 3 i Ø 4
Output HDPE Ø4 kg/h 1,6-3,5
Output Ø3 kg/h PE 1.6–2.3     PP 1.3–2.0
Output Ø4 kg/h PE 2.0–3.5     PP 1.5–2.7
Max. air outlet temperature *C do 350
Max. Plastification temperature *C do 320
Weight kg 6,9 (without cable)
Size (L × W × H) mm 588*98*225
Conformity mark   CCA
Protection class II   II
Article No.   123.866



FUSION 3C: Short and handy.

The somewhat shorter FUSION 3C provides an astounding output volume of up to 3.6 kilograms per hour.

• High-quality welding performance
• Compact and handy
• Motor start-up protection prevents cold start
• Simple operation
• Dual-sided, twist-free wire intake
• 360° rotating welding shoe

Attribute Unit Value
Power V 230
Voltage W 2800
Frequency Hz 50/60
Air volume (20*C) l/min 300
Material   PE/PP
Welding rod mm Ø 3 i Ø 4
Output HDPE Ø4 kg/h 1,6-3,5
Output Ø3 kg/h PE 1.6–2.3     PP 1.3–2.0
Output Ø4 kg/h PE 2.0–3.5     PP 1.5–2.7
Max. air outlet temperature *C do 350
Max. Plastification temperature *C do 320
Weight kg 6,9 (without cable)
Size (L × W × H) mm 588*98*225
Conformity mark   CCA
Protection class II   II
Article No.   123.866
